90mm Elbow with Glass Reinforced PA Thread - 10N700
#10N700
Body Material
Polypropylene, high-grade copolymer.
Nut Material
Polypropylene, high-grade copolymer.
Split Ring Material
Polyacetal
Seal Material
NBR/EPDM
Thread Material
Glass Reinforced Polyamide
Standards
Standards
Thread Standard
ISO 7-1
Brochures
Videos
Family Products

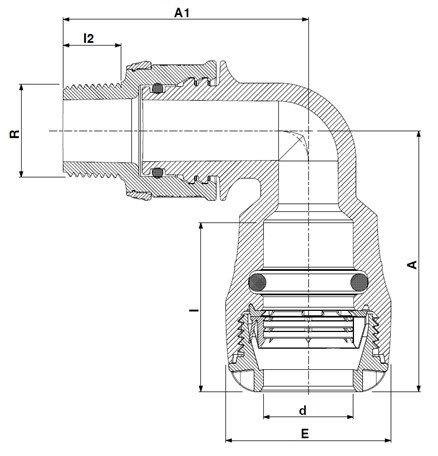

| Product Code |
d
mm
|
R
inch
|
A
mm
|
A1
mm
|
E
mm
|
l
mm
|
l1
mm
|
Pressure Rating Water
|
Weight
g
|
Unit Per Bag
|
Unit Per Carton
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| 10N700020005 | 20 | 1/2" | 67 | 67 | 41 | 45 | 16 | PN 16 | - | 1 | - |
| 10N700020007 | 20 | 3/4" | 67 | 68 | 41 | 45 | 17 | PN 16 | - | 1 | - |
| 10N700020010 | 20 | 1" | 67 | 70 | 41 | 45 | 19 | PN 16 | - | 1 | - |
| 10N700025005 | 25 | 1/2" | 73 | 69 | 47 | 48 | 16 | PN 16 | 90 | 1 | 250 |
| 10N700025007 | 25 | 3/4" | 73 | 70 | 47 | 48 | 17 | PN 16 | 90 | 1 | 200 |
| 10N700025010 | 25 | 1" | 73 | 72 | 47 | 48 | 19 | PN 16 | 100 | 1 | 200 |
| 10N700032007 | 32 | 3/4" | 81 | 76 | 58 | 54 | 17 | PN 16 | - | 1 | - |
| 10N700032010 | 32 | 1" | 81 | 78 | 58 | 54 | 19 | PN 16 | 190 | 1 | 130 |
| 10N700032013 | 32 | 1 1/4" | 81 | 92 | 58 | 54 | 22 | PN 16 | 200 | 1 | 100 |
| 10N700032015 | 32 | 1 1/2" | 81 | 92 | 58 | 54 | 22 | PN 16 | - | 1 | - |
| 10N700032020 | 32 | 2" | 81 | 97 | 58 | 54 | 26 | PN 16 | - | 1 | - |
| 10N700040007 | 40 | 3/4" | 106 | 89 | 70 | 70 | 17 | PN 16 | - | - | - |
| 10N700040010 | 40 | 1" | 106 | 91 | 70 | 70 | 19 | PN 16 | 270 | 1 | 90 |
| 10N700040013 | 40 | 1 1/4" | 106 | 95 | 70 | 70 | 22 | PN 16 | 270 | 1 | 65 |
| 10N700040015 | 40 | 1 1/2" | 106 | 95 | 70 | 70 | 22 | PN 16 | 280 | 1 | 75 |
| 10N700050013 | 40 | 2" | 119 | 105 | 85 | 78 | 22 | PN 16 | - | 1 | - |
| 10N700050015 | 50 | 1 1/4" | 119 | 105 | 85 | 78 | 22 | PN 16 | - | 1 | - |
| 10N700050020 | 50 | 1 1/2" | 119 | 109 | 85 | 78 | 26 | PN 16 | - | 1 | - |
| 10N700063013 | 50 | 2" | 141 | 114 | 103 | 90 | 22 | PN 16 | - | 1 | - |
| 10N700063015 | 63 | 1 1/2" | 141 | 114 | 103 | 90 | 22 | PN 16 | 710 | 1 | 30 |
| 10N700063020 | 63 | 2" | 141 | 119 | 103 | 90 | 26 | PN 16 | 710 | 1 | 30 |
