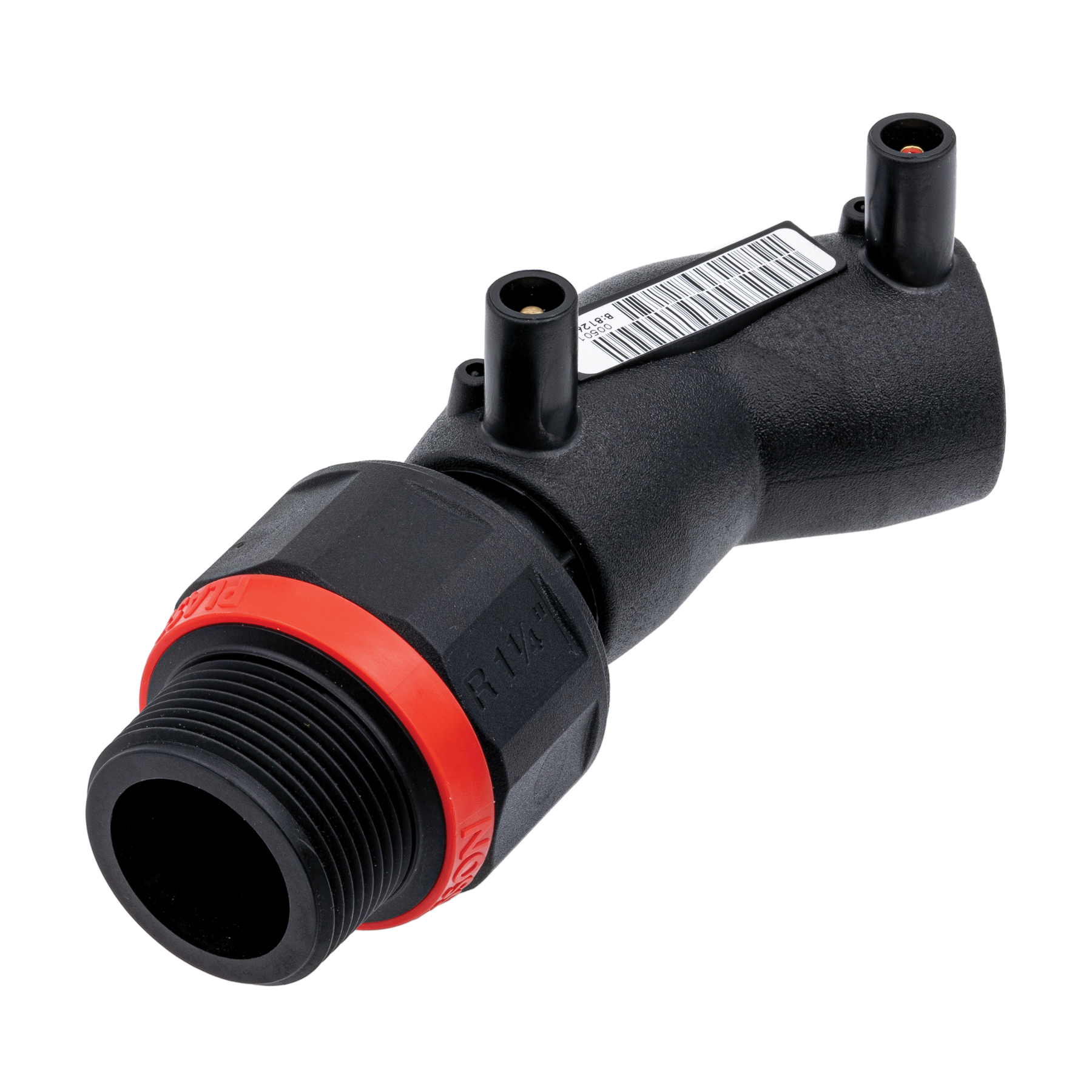

45° Elbow Transition with Glass Reinforced PA Thread - 4926N4
#4926N4
Body Material
PE100
Seal Material
EPDM
Thread Material
Glass Reinforced Polyamide
Standards
ISO 4427, EN 12201, AS/NZS 4129
Thread Standard
ISO 7-1
Brochures
Family Products

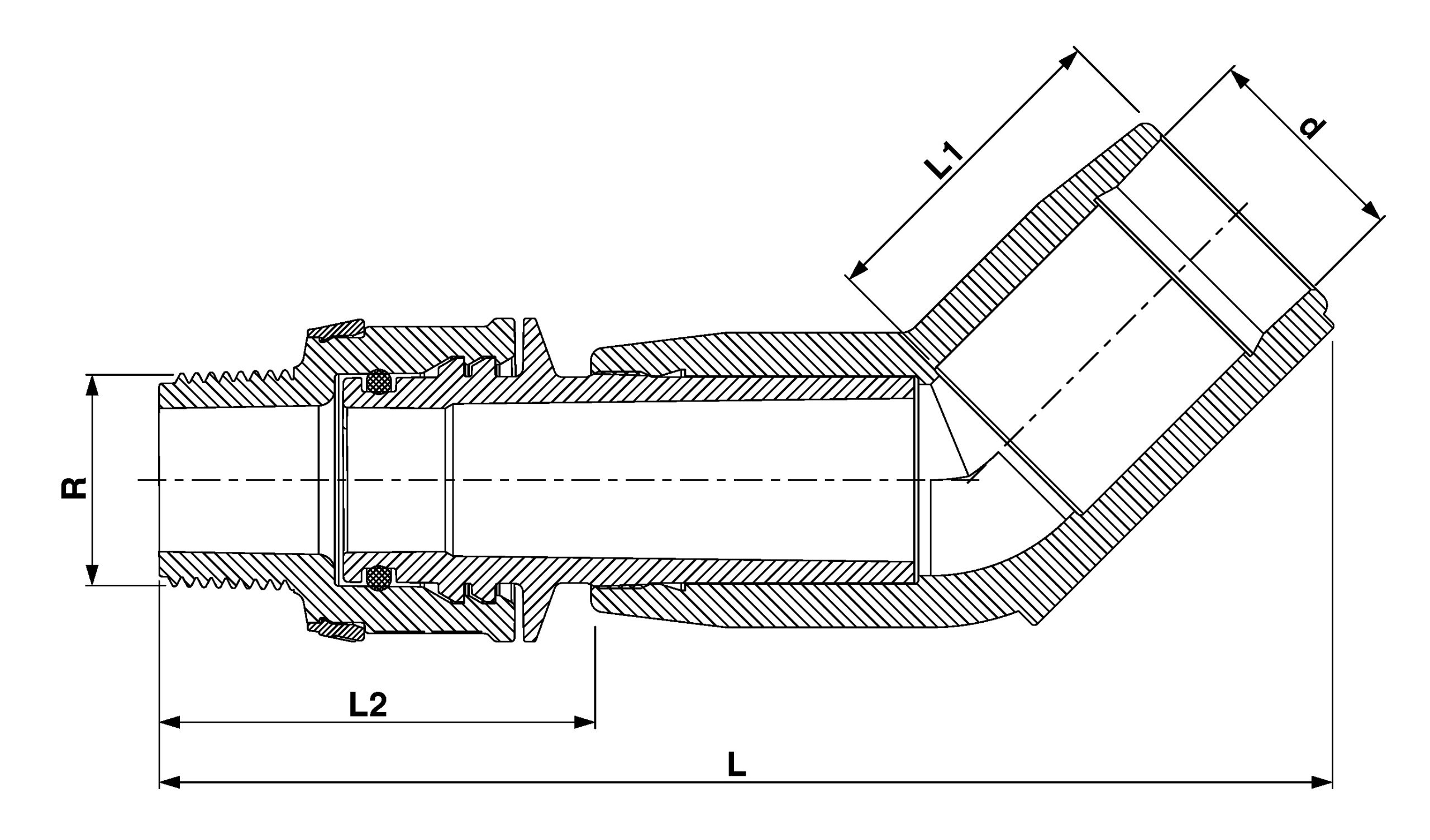

| Product Code |
d
mm
|
R
inch
|
A
mm
|
L2
mm
|
L
|
L1
mm
|
Pressure Rating Water
|
Weight
g
|
Unit Per Bag
|
Unit Per Carton
|
|---|---|---|---|---|---|---|---|---|---|---|
| 4926N4032007 | 32 | 3/4" | 41 | 66 | 169 | 44 | PN 16 | - | 1 | 200 |
| 4926N4032010 | 32 | 1" | 41 | 68 | 171 | 44 | PN 16 | 200 | 1 | 160 |
| 4926N4032013 | 32 | 1 1/4" | 41 | 71 | 174 | 44 | PN 16 | - | 1 | - |
| 4926N4032015 | 32 | 1 1/2" | 41 | 71 | 174 | 44 | PN 16 | - | 1 | - |
| 4926N4032020 | 32 | 2" | 41 | 76 | 179 | 44 | PN 16 | - | 1 | - |
| 4926N4040007 | 40 | 3/4" | 45 | 67 | 182 | 48 | PN 16 | - | 1 | - |
| 4926N4040010 | 40 | 1" | 45 | 69 | 184 | 48 | PN 16 | - | 1 | - |
| 4926N4040013 | 40 | 1 1/4" | 45 | 71 | 186 | 48 | PN 16 | - | 1 | - |
| 4926N4040015 | 40 | 1 1/2" | 45 | 71 | 186 | 48 | PN 16 | - | 1 | - |
| 4926N4040020 | 40 | 2" | 45 | 77 | 192 | 48 | PN 16 | - | 1 | - |
| 4926N4050013 | 50 | 1 1/4" | 50 | 89 | 214 | 49 | PN 16 | - | 1 | - |
| 4926N4050015 | 50 | 1 1/2" | 50 | 89 | 214 | 49 | PN 16 | 490 | 1 | 46 |
| 4926N4050020 | 50 | 2" | 50 | 93 | 218 | 49 | PN 16 | - | 1 | - |
| 4926N4063013 | 63 | 1 1/4" | 56 | 86 | 236 | 58 | PN 16 | - | 1 | - |
| 4926N4063015 | 63 | 1 1/2" | 56 | 86 | 236 | 58 | PN 16 | - | 1 | - |
| 4926N4063020 | 63 | 2" | 56 | 90 | 240 | 58 | PN 16 | 610.0000 | 1 | 30 |
